HAZLOC LED B-TOP
Part Number: BE-EXP-B-TOP
36,000
LUMENS
100-277V
277-480V
29
POUNDS
IP66
NEMA 4X
UL1598A
MARINE
C1D2
RATING
IDEAL FOR HARSH ENVIRONMENTS
HAZARDOUS C1D2 LED FLOOD WITH MARINE GRADE RATING
- Replace Your 1000 Watt HID Flood Light with Ease
- Dual Cable Entry for Quick Installation
- Easy Access Driver Box for Simple Maintenance
- Inventronics Driver with Built-In Surge Protection
- Multiple Lens Degrees Available and Visor Optional
- Stainless Steel Adjustable Bracket Included & Installed!
Top 5 Key Specs & features
If you’re looking for a versatile LED HazLoc Flood Light that is easy to install and maintain, look no further!
1. Outdoor Rating (UL1598A Marine Grade)
2. Easy to Install & Maintain (Easy Access Driver Box)
3. Adjustable Bracket (Stainless Steel – Included & Installed out of the box!)
4. Up to 36,000 Lumens (3 Lumen Options to Choose From)
5. Inventronics Driver (Proven to last in harsh environments)

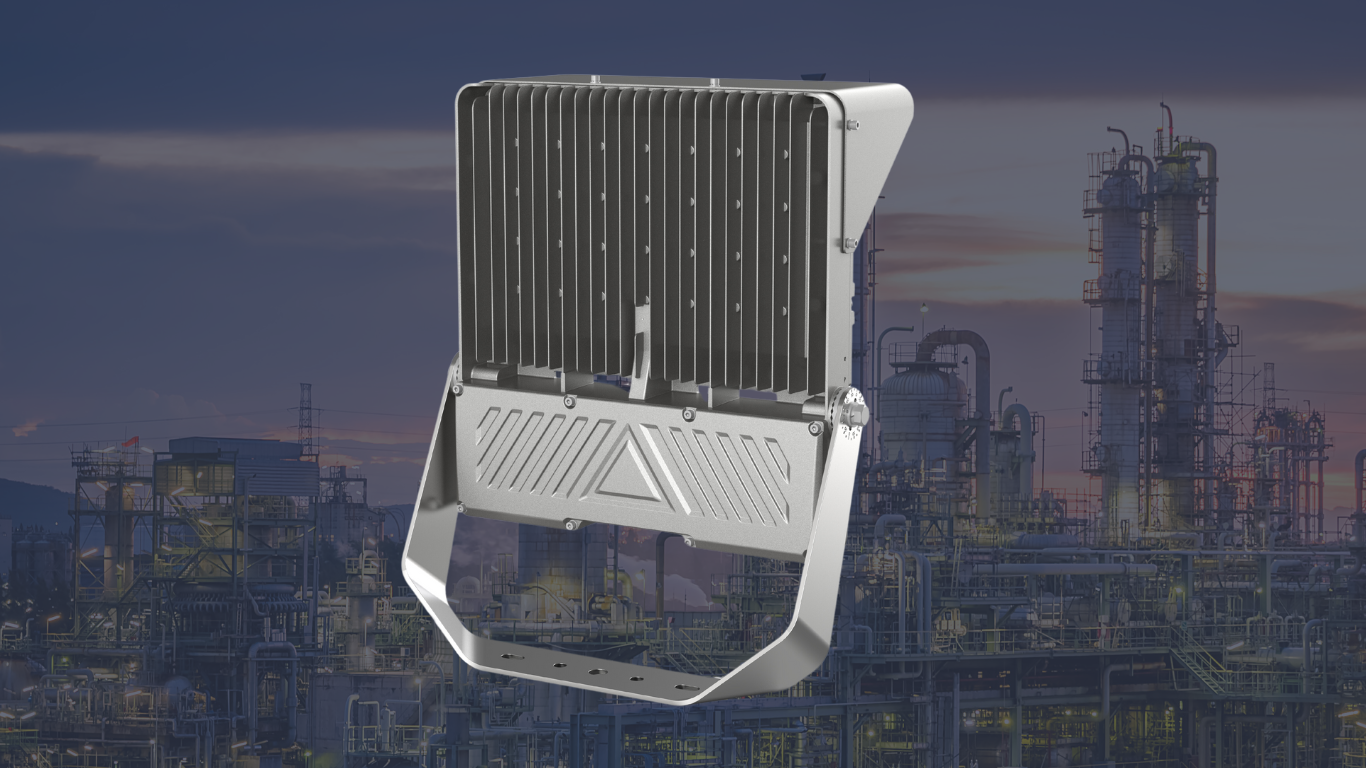

EASY TO INSTALL & MAINTAIN
ELECTRICAL CONNECTION INFORMATION
- Easy Access Driver Box for Simple Maintenance
- Well Organized Terminal Block for Quick Cable Connections
- Entry Point and Exit Point
- Replaceable Components
- Built-In 10Kv Surge Proections (Installed)
- No Cable Included (Standard)
- 6′, 10′ or Custom Pigtail Length Available
The Brighter the Better
Increase Your Lighting Levels Indoors and Out
- 150W (22,500 lm), 200W (30k lm) 240W (36k lm)
- Nichia LED Chips Manufactured in Japan
- 150 Lumens Per Watt Efficiency (CRI 70)
- CCT 5000K Bright Industrial Day Light (Other Options Available)
- Optional Visor Available
- Customize Your Lens Optics with Narrow, Medium or Wide Angles
Cascading Driver Protection
Offering the Most Complete Protection for the Driver is the Key to a Longer LED Life
- Internal 10 kV Built-In Surge Protection
- External 10 kV Cascading Driver Protection (Comes Installed in Driver Box)
- Inventronics Driver PROVEN to last in real world harsh industrial environments
- Supports Wide Range AC and DC Input in a Single Driver!
- Low Voltage Driver: 100-277 Vac and 250 Vdc
- High Voltage Driver: 277-480 Vac
Fixture Specs
HOUSING: Copper Aluminum Body for Corrosion Resistence
WEIGHT: 29 lbs (13 kg)

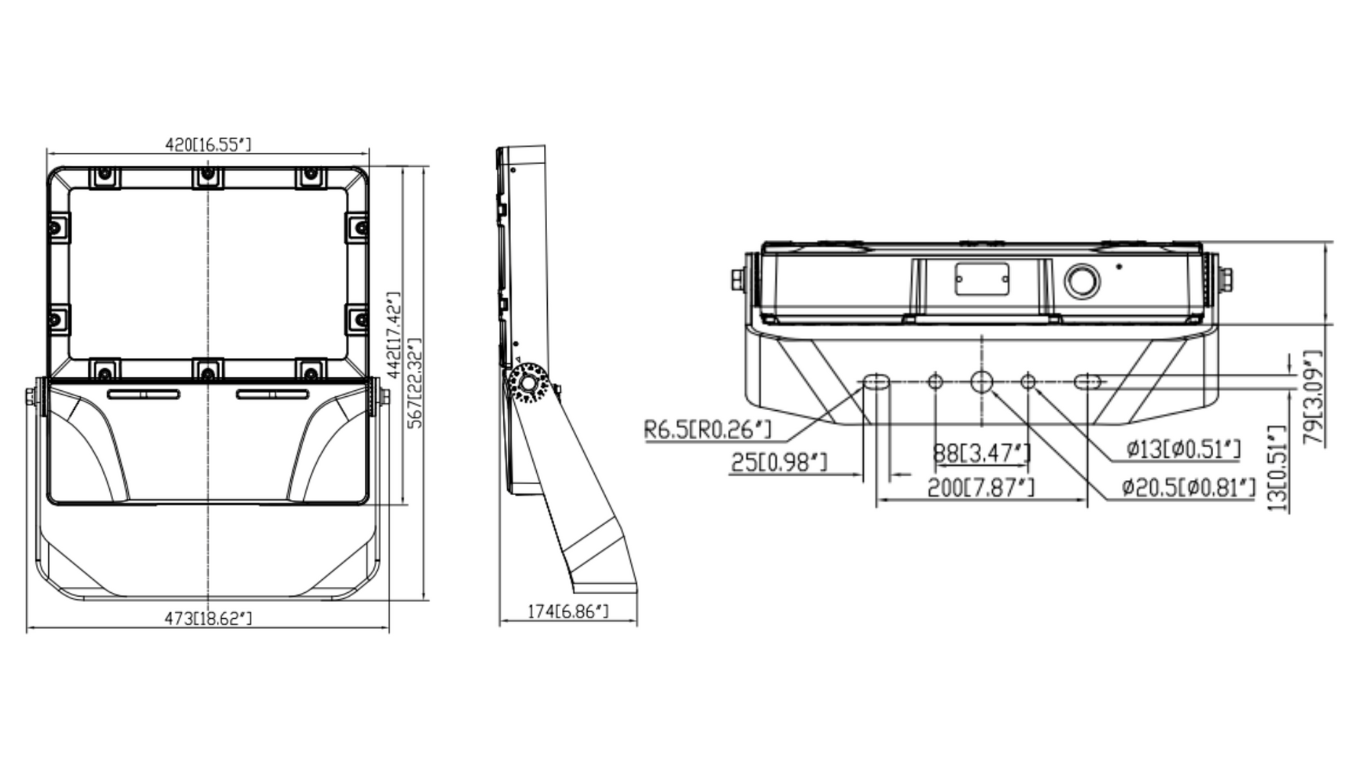

DIMENSIONS: 17.5″ Tall by 16.5″ Wide (excluding bracket)
RATINGS: IP66 & NEMA 4x
OPTICS: Wide, Medium, Narrow
TEMP: -40°C to +65°C Temperature Rating
LISTINGS: UL, cUL, ETL, C1D2
WARRANTY: 5-Year Express Warranty
Adjustable Bracket
Heavy-Duty Stainless Steel
- 304 Stainless Steel
- Heavy Duty Industrial Grade Bracket
- Adjustable up to 140 degrees
- Perfect for mounting indoors or outdoors
- Bracket included and installed out of the box!
- Easy to remove bracket if needed
- Compatible with slip fitter / pole mount (optional)
Customize your fixture
PART NUMBER EXAMPLE: BE-EXP-FL23-240W-LV-D90-5000K-C1D2-VISOR-10PT
Wire Guard
Add Part #: WG
Beam Angle Lens
Add Part #: D60°/D90°/D120°
Visor
Add Part #: VISOR
