UNIVERSAL INDUSTRIAL LED
Part Number: BE-CHB-50W-90W
Key Features
- MeanWell Driver – 100/277 Vac (127-431Vdc)
- Nichia Chip Set – L70 Lifespan of >100,000 Hours
- Low Profile durable High Bay
- 140lm/W High Lumen Output
- IP65 Water Spray Test Approved
- +65°C Temperature Rating
- Multiple Mounting Options Available for Various Applications
Fixture Specs
UNIVERSAL INDUSTRIAL LED: BE-CHB-50W-90W
LUMENS | WATTAGE |
12,600 lm | 90W |
9,800 lm | 70W |
7,000 lm | 50W |
LV |
Low Volt |
100-277Vac |
Meanwell |
SPECIFICATIONS | |
Luminous Efficacy | 140 lm/w |
CCT | 3000K, 4000K, 5000K (Standard) |
CRI | >Ra70 |
IP Rating | IP65 (round) |
Chipset | NICHIA |
Operating Temp. | -30° C to +65° C |
Warranty | 5 Years |
Certifications | cUL, CE, DLC, UL, RoHS |
DEGREE | BEAM | NEMA | MATERIAL |
D120 | Wide | NEMA 6 | Tempered Glass |
D90 | Medium Wide | NEMA 5 | Polycarbonate |
Mounting Options
UNIVERSAL INDUSTRIAL LED: BE-CHB-50W-90W
APPLICATION | PRODUCT | PART |
HIGH BAY |  | LOOP HANGING (Standard) |
CRANE |  | BRACKET 27 |

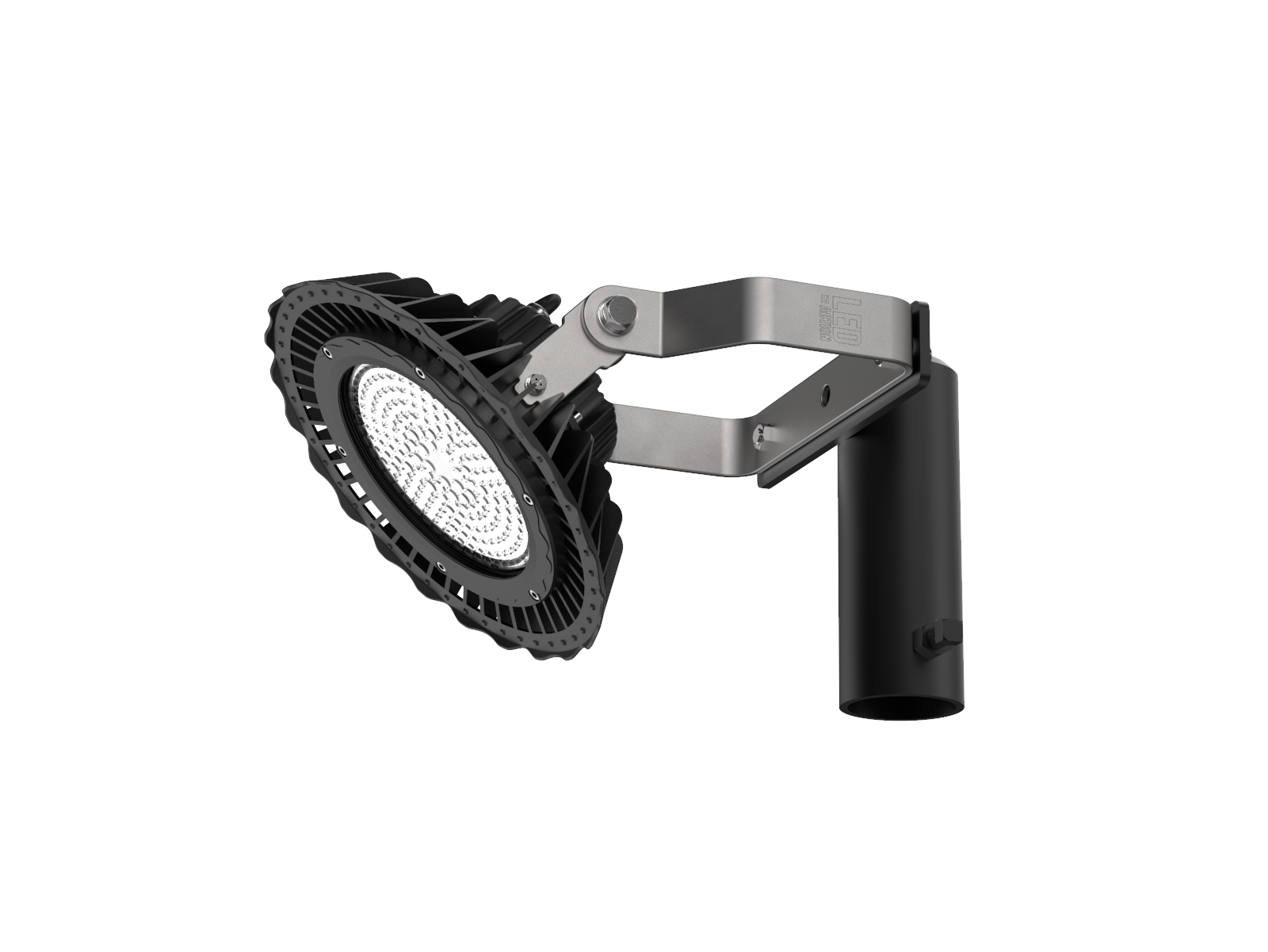

MAST |  | BRACKET 22+07 (Slip Fitter) |
FLOOD |  | BRACKET 22 (Adjustable) |
PART | PRODUCT | DESCRIPTION |
LOOP | | Loop Hanging (Included / Standard) |
HOOK |  | HOOK |
22 |  | Adjustable Stainless Steel Bracket 22 |
07 |  | Bracket 07 (Slip Fitter) |
27 |  | Heavy Duty Non-Adjustable Bracket 27 |
90ALU |  | Aluminum Shade |
PCREFL |  | PC Reflector |
Fixture ordering matrix
UNIVERSAL INDUSTRIAL LED: BE-CHB-50W-90W
Product Name | Wattage | Lens Degree | Input Voltage | CCT | Options |
BE-CHB | 50w 70W 90w | D90 D120 | LV 100-277Vac | 3000K 4000K 5000K (Standard) | SC Safty cable SGS Surge Suppressor HOOK Hook 90ALU 90° Aluminum shade PC REFL PC Reflector PT Pigtail |
Example: BE-CHB-50W-D120-LV-5000K-22-07-SC-SGS | |||||
