LED Crane LIGHT
Part Number: BE-CHB-300W-D60-sHV-5000K-11-SC-SGS
45,000
LUMENS
600
VAC
18
POUNDS
IP65
RATING
+65°C
TEMP
300
WATTS

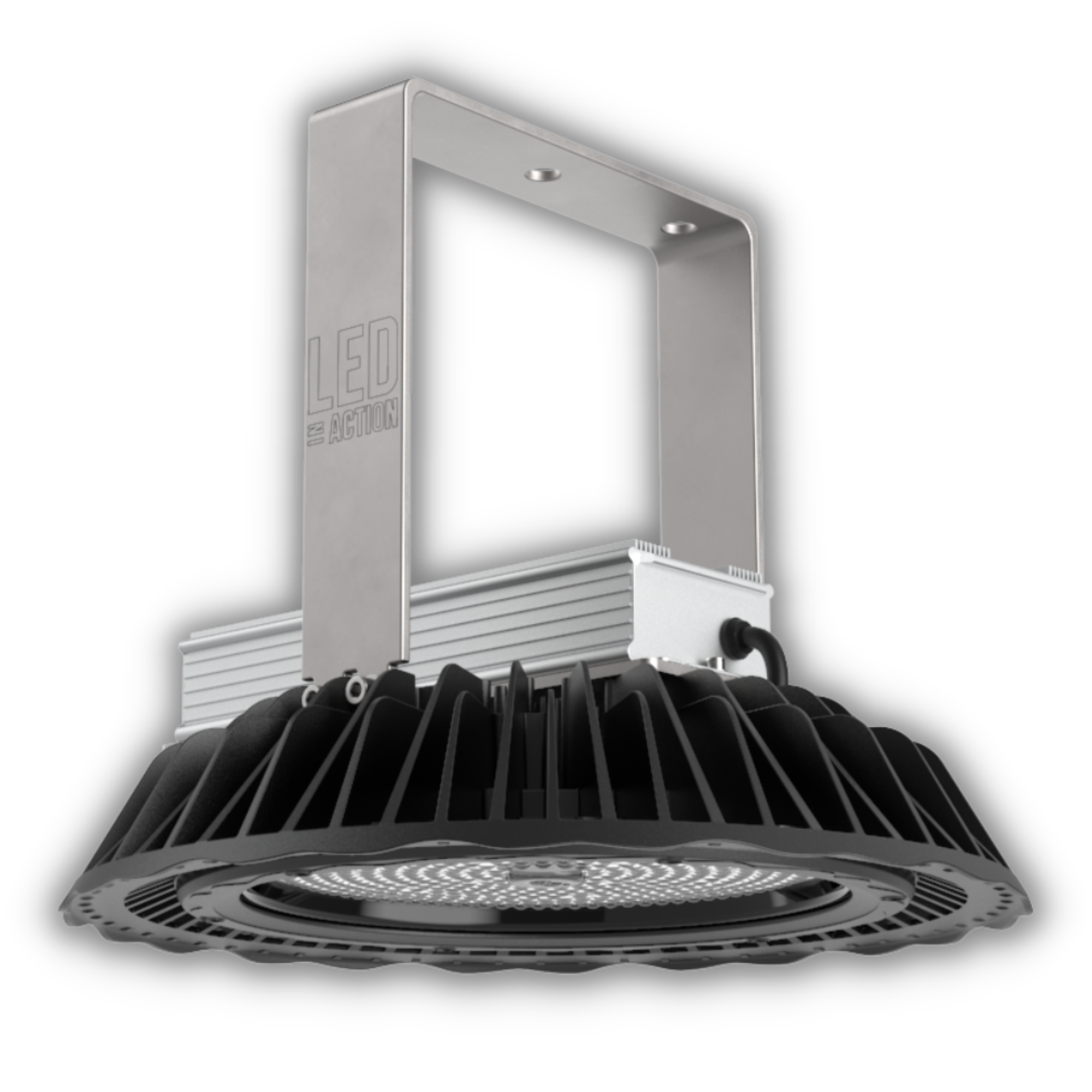

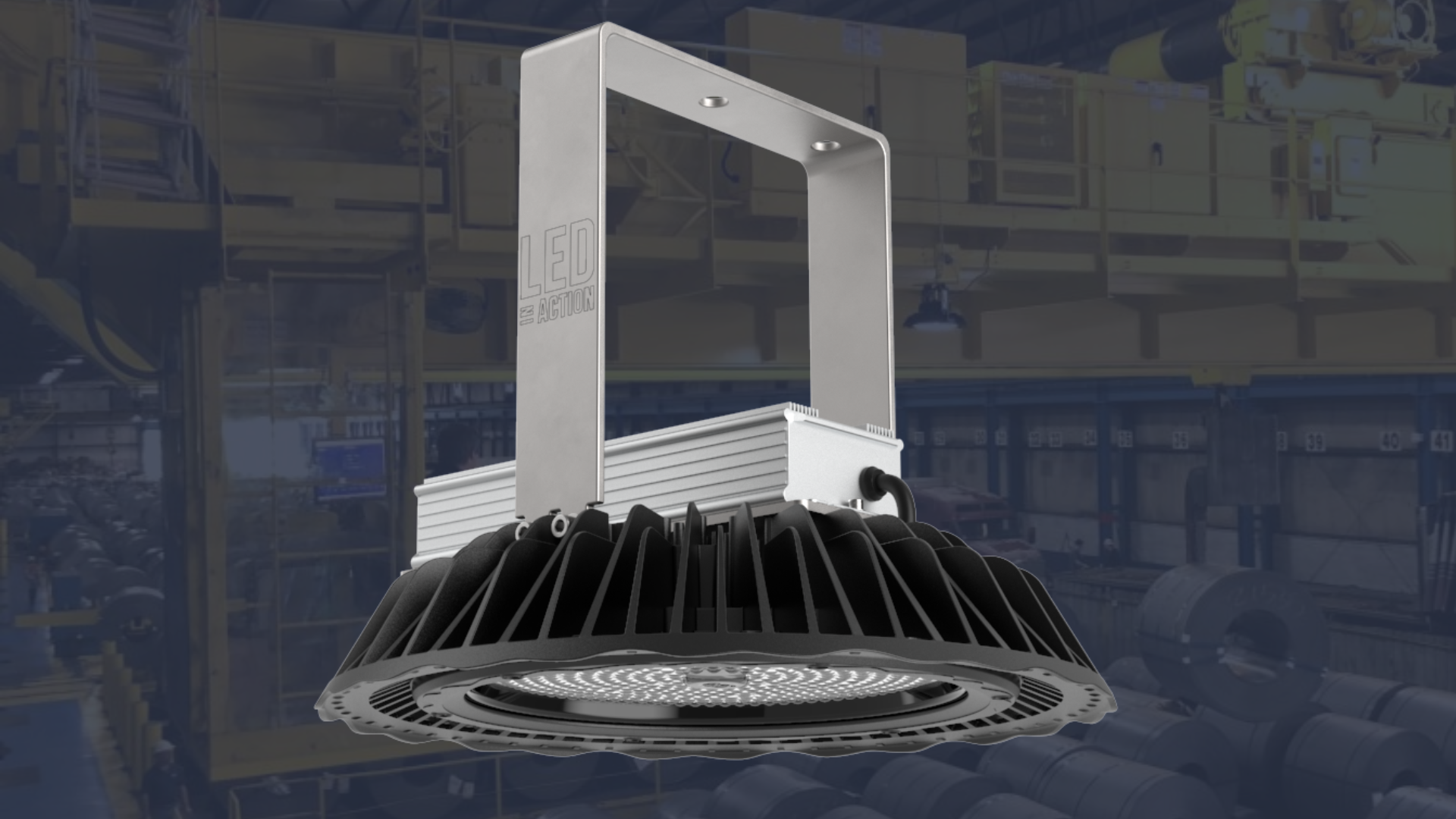

The 45,000-lumen Industrial LED Crane Light is built with a wide range voltage driver which allows for frequent voltage spikes while maintaining maximum light output.
What’s Included
- Powerland External Driver
- Cascading Surge Protection with 6 kV Built-In
- Nichia 3030 LED Chips Manufactured in Japan Delivering 49FC at 50′
- M10 Stainless Steel Loop Mount
- 1/8″ Aircraft Safety Cable With Clamp
Wide Voltage Range
Powerland Offers 600 Vac Input Drivers
- Powerland Driver PLD-600-SMT-54-H3A
- Electronic Components are Encapsulated to a Solid State to Prevent Movement or Shifting
- Supports Wide Range AC Input in a Single Driver from 205-600 Vac
- Driver IP67 Waterproof Rating for Outdoor & Wet Applications
- Driver Case Temp Rated for 70,000 Hours @ 70°C
Easy to install & Maintain
Electrical Connection Information
- 2′ Pigtail (With Option of 6′ or 10′ or Longer)
- 17AWG, 3-Conductor, 600 Volt Cable with 105°C Temp Rating
- Easy Access Driver for Simple Maintenance
Industry-leading foot candles
Maximize Usable Light at the Working Plane From High Mounting Heights
- Delivering 60 Footcandles to the Working Plane From 60′ Mounting Height
- Nichia 3030 LED Chips Manufactured in Japan
- 150 Lumens Per Watt Efficiency
- CRI 70
- CCT 5000K Bright Industrial Day Light (Other Options Available)
- 60 Degree Medium Beam Acrylic Lens (Other Options Available)
Cascading Driver Protection
Offering the Most Complete Protection for the Driver is the Key to a Longer LED Life
- Internal 10 kV Built-In Surge Protection
- External 20 kV Cascading Driver Protection
- Over-Voltage Protection Limits Output to 60%
- Over-Power Protection Limits Output to 60%
- Over-Temperature Protection Limits Output to 60%
Fixture Specs
HOUSING: Aluminum Alloy with Powder Coating
WEIGHT: 18 lbs
DIMENSIONS: 10″ Tall by 15″ Diameter
RATINGS: IP65
OPTICS: D60 Medium Beam Angle with Acrylic Lens
TEMP: -40°C to +65°C Temperature Rating
LISTINGS: UL, cUL, RoHS, CE,
DLC Premium v5.1 (Depending on Optics)
WARRANTY: 5-Year Express Warranty

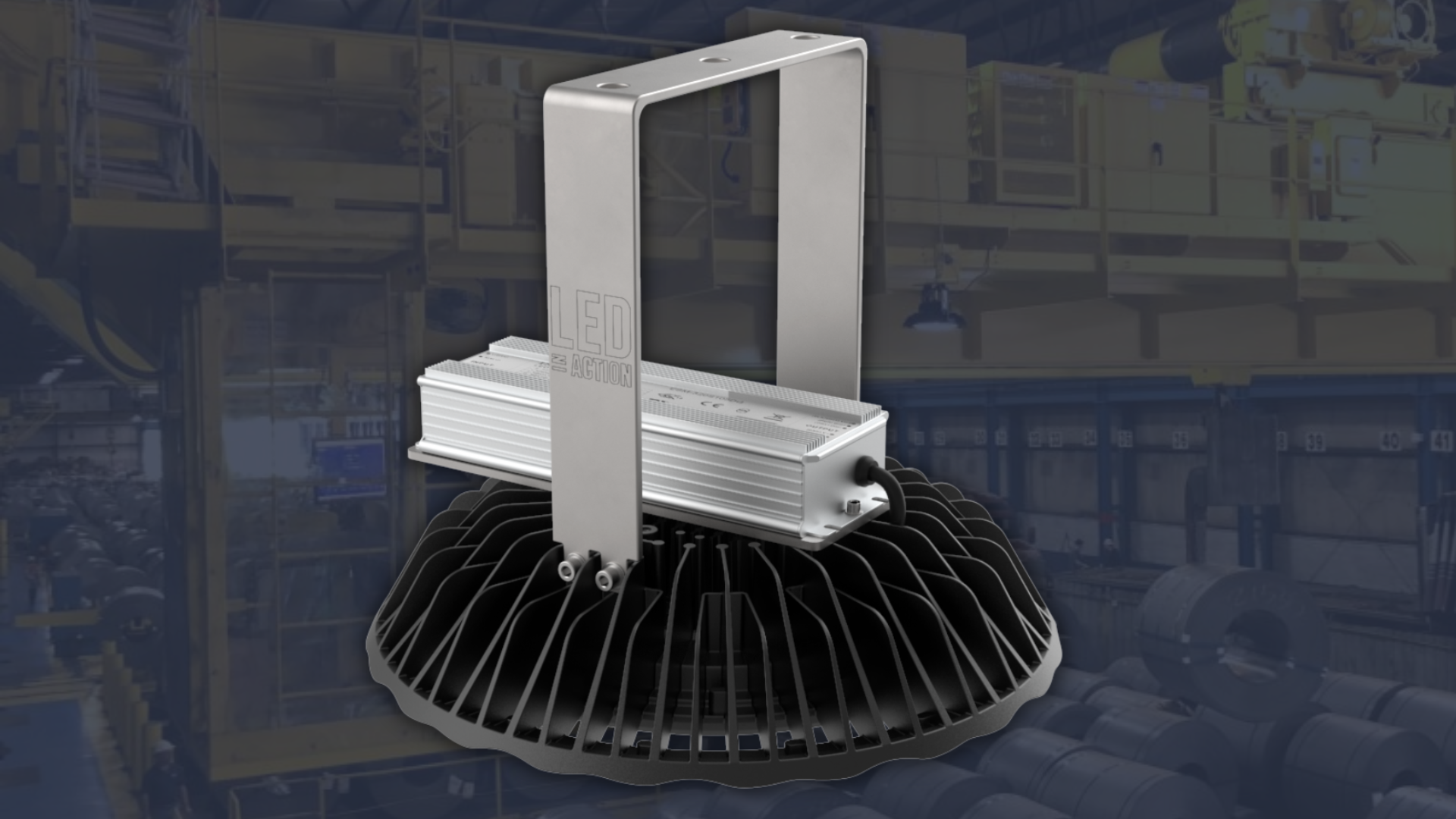

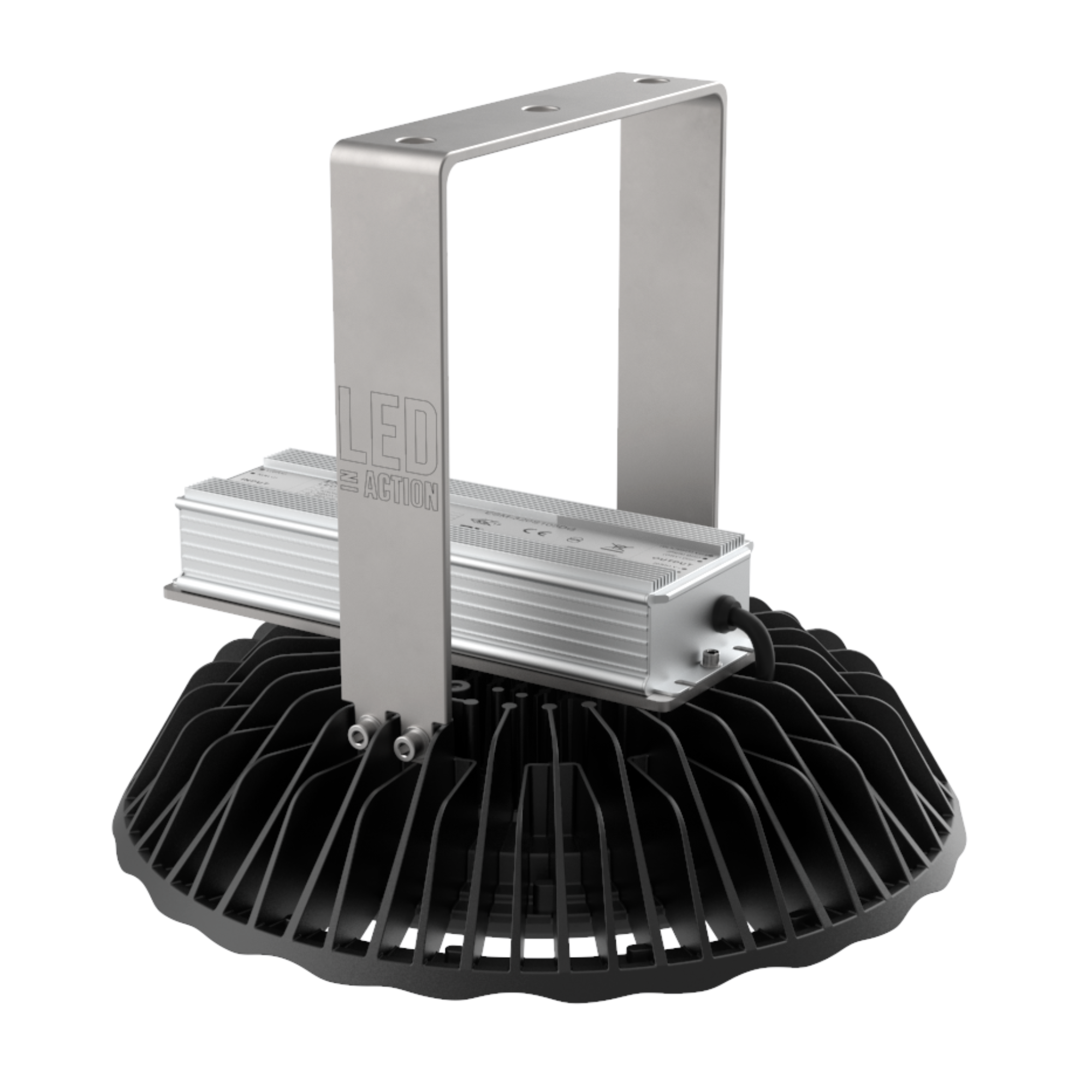

Crane Bracket
Heavy-Duty Stainless Steel
- 304 Stainless Steel Industrial Grade Bracket
- Easy to Install or Remove Brackets to Utilize the Fixture for Other Applications
Customize your fixture
YOUR PART NUMBER: BE-CHB-300W-D60-SHV-5000K-11-SC-SGS
Beam Angle Lens
Add Part #: D30°/D90°/D120°
Junction Box + 6′ Pigtail
Add Part #: JCB w/ 6’PT
