LED Crane LIGHT
Part Number: BE-CHB-90W-D120-LV-5000K-27-SC-SGS
12,600
LUMENS
100-277
VAC
250
VDC
8
POUNDS
+65°C
TEMP
90
WATTS
The 12,600-lumen Industrial LED Crane Light is built with a wide range voltage driver which allows for frequent voltage spikes while maintaining maximum light output.
What’s Included
- Easy Access Driver Box with External 6′ Pigtail
- Round Meanwell Driver with Wide Voltage Range
- Cascading Surge Protection with 6 kV Built-In + 20 kV External
- Nichia 3030 LED Chips Manufactured in Japan
- Stainless Steel Crane Bracket
- 1/8″ Aircraft Safety Cable With Clamp
Wide Voltage Range
MeanWell Offers Industrial Grade Drivers with the Highest Quality Components
- MeanWell Driver XBG-100-AB
- Electronic Components are Encapsulated to a Solid State to Prevent Movement or Shifting
- Supports Wide Range AC and DC Input in a Single Driver from 90-305 Vac & 127-431 Vdc
- Driver IP67 Waterproof Rating for Outdoor & Wet Applications
- Driver Case Temp Rated for 100,000 Hours @ 65°C
Easy to install & Maintain
Electrical Connection Information
- 6′ Pigtail (With Option of 10′ or Longer)
- 17AWG, 3-Conductor, 300 Volt Cable with 105°C Temp Rating
- Easy Access Round External Driver for Simple Maintenance
Industry-leading foot candles
Maximize Usable Light at the Working Plane From High Mounting Heights
- Nichia 3030 LED Chips Manufactured in Japan
- 140 Lumens Per Watt Efficiency
- CRI 70
- CCT 5000K Bright Industrial Day Light (Other Options Available)
- 120 Degree Wide Beam Glass Lens (Other Options Available)
Cascading Driver Protection
Offering the Most Complete Protection for the Driver is the Key to a Longer LED Life
- Internal 6 kV Built-In Surge Protection
- External 20 kV Cascading Driver Protection
- Over-Voltage Protection
- Over-Power Protection
- Over-Temperature Protection
Fixture Specs
HOUSING: Aluminum Alloy with Powder Coating
WEIGHT: 8 lbs

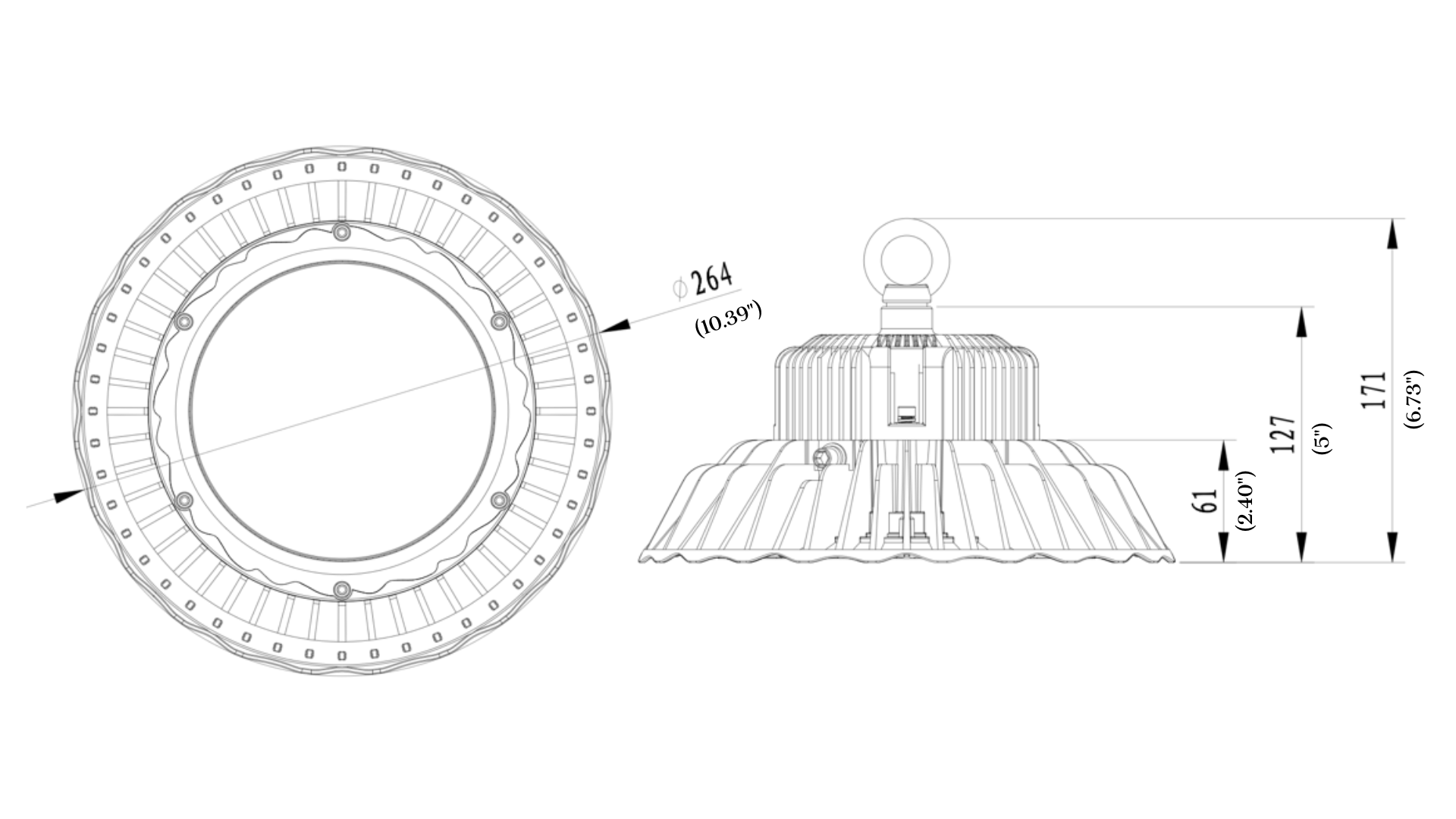

DIMENSIONS: 7″ Tall by 10″ Diameter
RATINGS: IP65
OPTICS: D120 Degree Wide Beam Glass Lens
TEMP: -40°C to +65°C Temperature Rating
LISTINGS: UL, cUL, RoHS, CE,
DLC Premium v5.1 (Depending on Optics)
WARRANTY: 5-Year Express Warranty

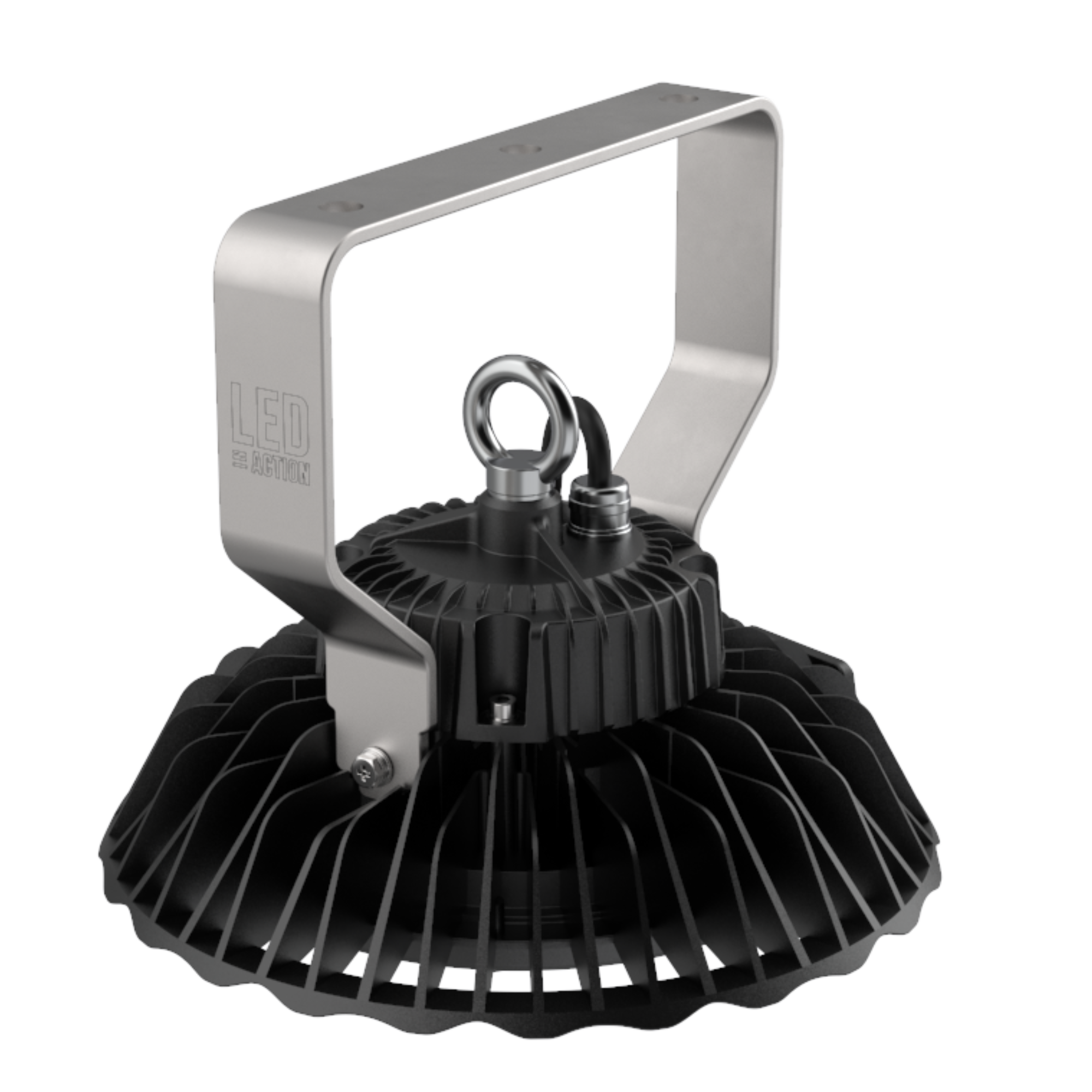

Crane Bracket
Heavy-Duty Stainless Steel
- 304 Stainless Steel Industrial Grade Bracket
- Easy to Install or Remove Brackets to Utilize the Fixture for Other Applications
Customize your fixture
YOUR PART NUMBER: BE-CHB-90W-D120-LV-5000K-SC-SGS-27
Custom Pigtail
Add Part #: 10PT (10′ Pigtail)
Beam Angle Lens
Add Part #: D90°
