LED High Bay LIGHT
Part Number: BE-CHB-300W-D60-HV-5000K-SC-SGS
45,000
LUMENS
277-480
VAC
18
POUNDS
IP65
RATING
+65°C
TEMP
300
WATTS
The 45,000-lumen Industrial LED High Bay Light is built to withstand harsh environments while remaining lightweight, making it easy to install and maintain.
What’s Included
- Inventronics External Driver with Wide Voltage Range
- Cascading Surge Protection with 10 kV Built-In + 20 kV External
- Nichia 3030 LED Chips Manufactured in Japan Delivering 60FC at 60′
- M10 Stainless Steel Loop Mount
- 1/8″ Aircraft Safety Cable With Clamp
Wide Voltage Range
Inventronics Offers Industrial Grade Drivers with the Highest Quality Components
- Inventronics Driver ESM-320S760DG
- Electronic Components are Encapsulated to a Solid State to Prevent Movement or Shifting
- Supports Wide Range AC and DC Input in a Single Driver from 249-528 Vac & 352-500 Vdc
- Driver IP67 Waterproof Rating for Outdoor & Wet Applications
- Driver Case Temp Rated for 105,000 Hours @ 70°C
Easy to install & Maintain
Electrical Connection Information
- 2′ Pigtail (With Option of 6′ or 10′ or Longer)
- 17AWG, 3-Conductor, 600 Volt Cable with 105°C Temp Rating
- Easy Access Driver for Simple Maintenance
Industry-leading foot candles
Maximize Usable Light at the Working Plane From High Mounting Heights
- Delivering 60 Footcandles to the Working Plane From 60′ Mounting Height
- Nichia 3030 LED Chips Manufactured in Japan
- 150 Lumens Per Watt Efficiency
- CRI 70
- CCT 5000K Bright Industrial Day Light (Other Options Available)
- 60 Degree Medium Beam Acrylic Lens (Other Options Available)
Cascading Driver Protection
Offering the Most Complete Protection for the Driver is the Key to a Longer LED Life
- Internal 10 kV Built-In Surge Protection
- External 20 kV Cascading Driver Protection
- Over-Voltage Protection Limits Output to 60%
- Over-Power Protection Limits Output to 60%
- Over-Temperature Protection Limits Output to 60%
Fixture Specs
HOUSING: Aluminum Alloy with Powder Coating
WEIGHT: 18 lbs

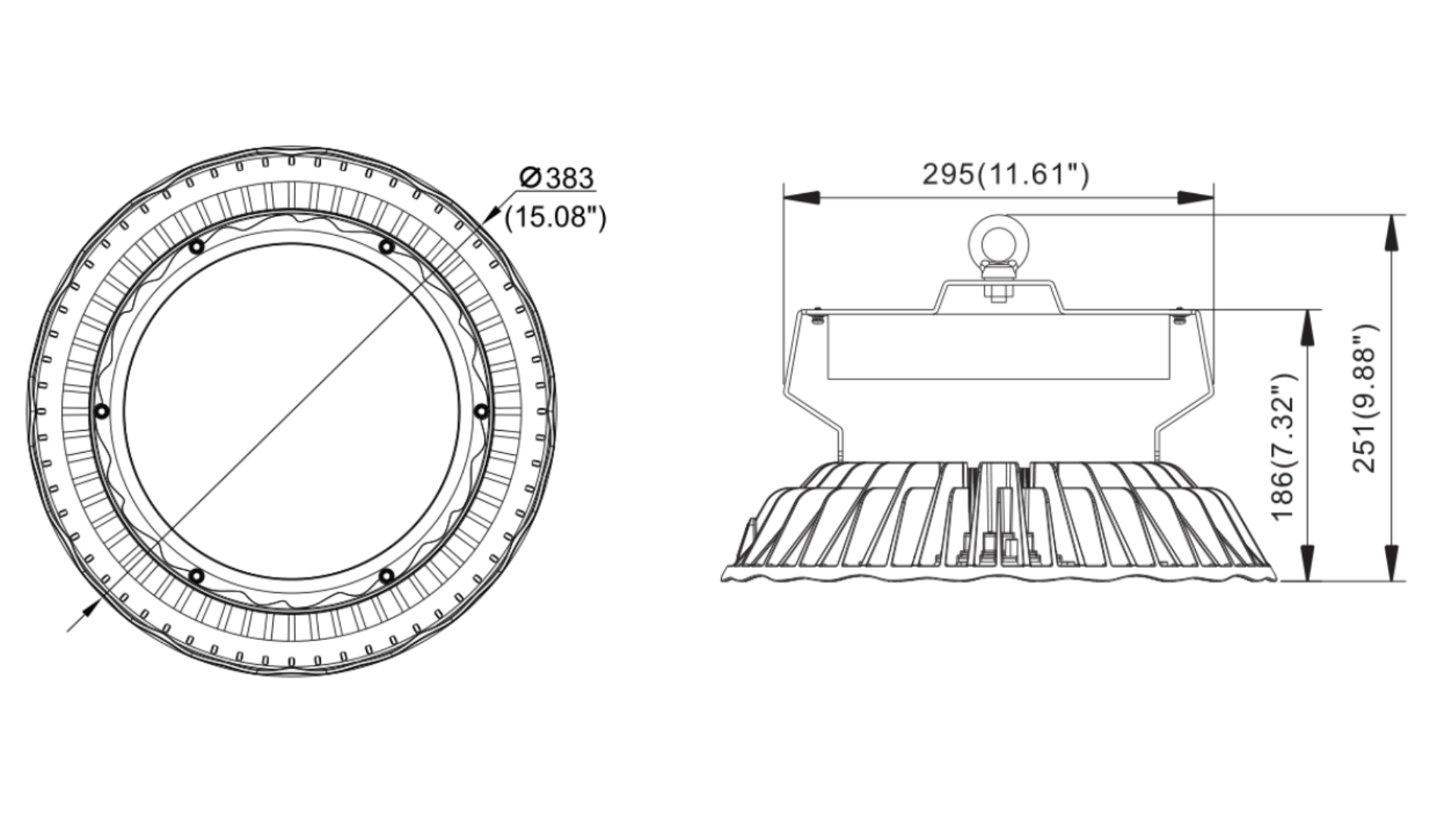

DIMENSIONS: 10″ Tall by 15″ Diameter
RATINGS: IP65
OPTICS: D60 Medium Beam Angle with Acrylic Lens
TEMP: -40°C to +65°C Temperature Rating
LISTINGS: UL, cUL, RoHS, CE,
DLC Premium v5.1 (Depending on Optics)
WARRANTY: 5-Year Express Warranty
Customize your fixture
YOUR PART NUMBER: BE-CHB-300W-D60-HV-5000K-SC-SGS
Beam Angle Lens
Add Part #: D30°/D90°/D120°

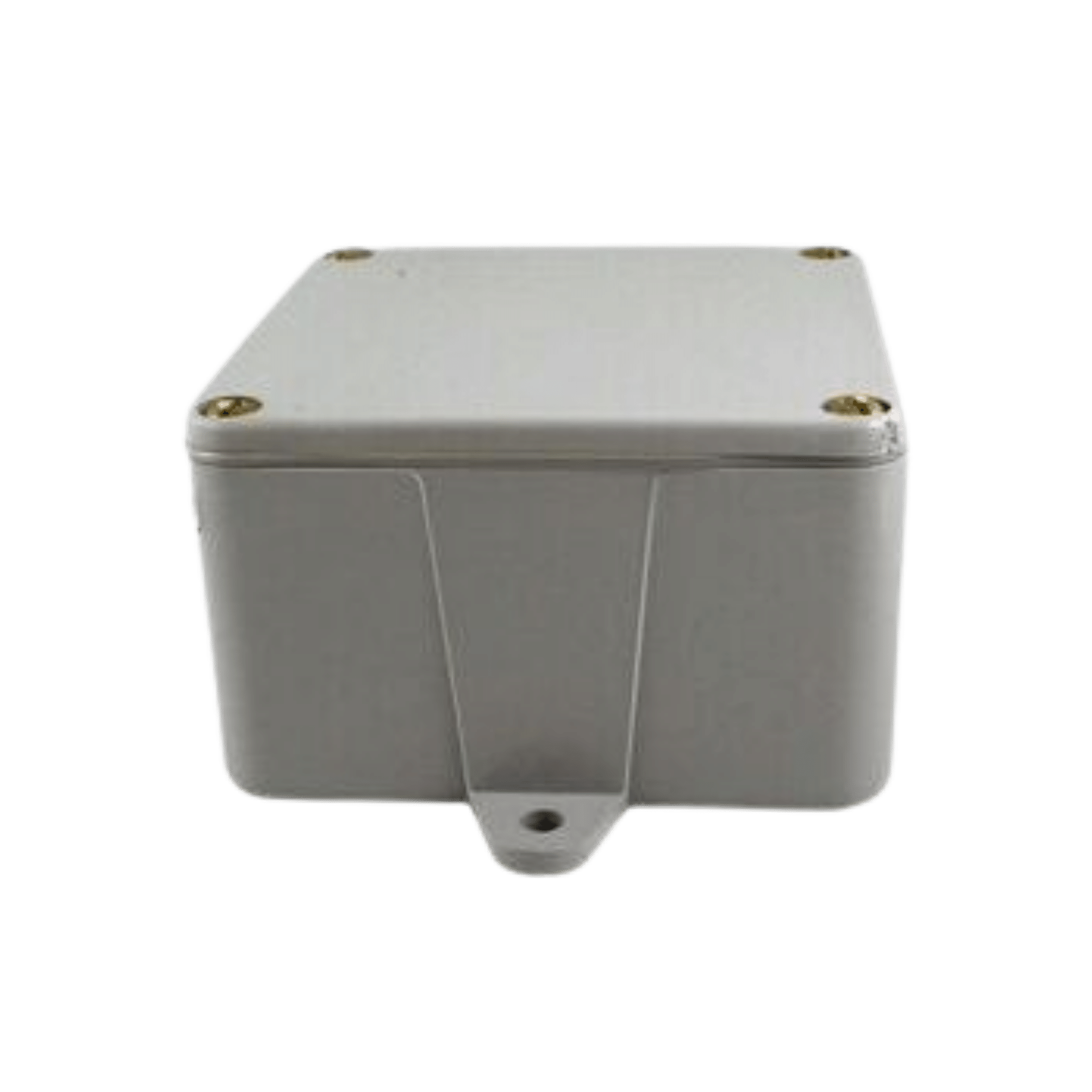

Junction Box + 6′ Pigtail
Add Part #: JCB w/ 6’PT
Hook Mount
Add Part #: HOOK
Polycarbonate Reflector
Add Part #:PCREF
